Save and switch traceability confirmation target

Overview

On the Trace page of Next Design, you can save multiple models to be displayed on the trace page and their order according to the traceability confirmation viewpoint, and you can switch the display at any time.

The model sequence displayed on the trace page is called Trace View Settings.

The following describes how to save and switch the trace setting information in the following order.

  • Save model list
  • Switch model order

Save the model list

To name and save the trace setting information that holds the model sequence, follow the steps below.

Save model list

Operating procedure

  1. Click the [Edit trace view settings] icon from the toolbar at the top of the trace page to display the [Trace View Setting] dialog box.
  2. Click the [Edit] button in the [Trace View Setting] dialog to display the [Trace Setting] dialog.
  3. Enter a name in the [Trace Setting] dialog and click the [OK] button to update the [Trace View Settings] list.
  4. Click the [OK] button in the [Trace View Setting] dialog to save the model sequence and select it from the [Trace Set] pull-down list on the toolbar.

Switching the order of models

To add another name for the trace configuration information so that it can be toggled:

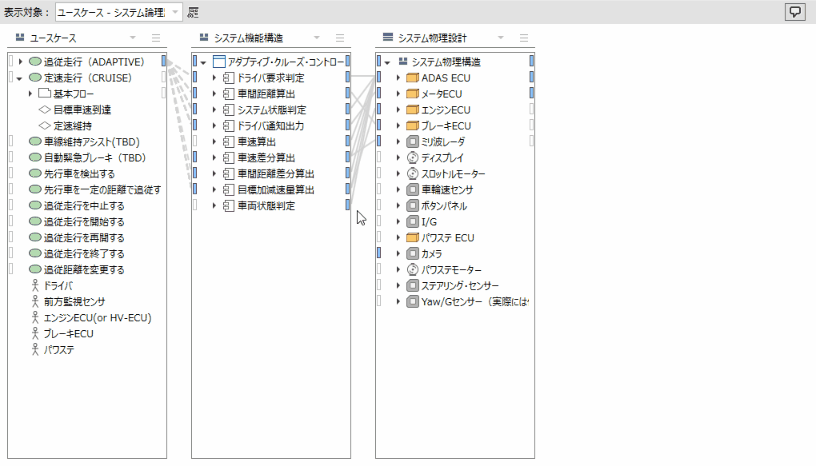

Switch model order

Operating procedure

  1. Click the [Edit trace view setting information] icon on the toolbar to display the [Trace View Setting] dialog.
  2. Press the [Add] button in that dialog and enter a name in the [Trace Setting] dialog.
  3. Then, press the [Add] button to select the model to be displayed in the lane and add it to the [Trace Series] list.
  4. Click the [OK] button in the [Trace Setting] dialog to add the trace setting information with the name entered in the [Trace View Settings] list.
  5. Click the [OK] button in the [Trace View Setting] dialog to save the trace setting information with the entered name and switch it using the [Trace Set] pull-down list on the toolbar.

Note

  • If you change the configuration of the model displayed in the lane on the trace page, the trace setting information to be displayed is automatically updated.

attention

  • At least one model must be added to the [Trace Series] list in the [Trace Setting] dialog to change settings such as adding lanes on the trace page.
